Why Choose HyLinX?

• Flexible Deployment
  Transmit signals across long distances — across floors or entire buildings — using standard network infrastructure.

• Centralized Management
  Support both centralized and distributed topologies, simplifying control for both local and remote operations.

• Multi-Format Compatibility
  Integrates seamlessly with HDMI, USB-C, DisplayPort, and supporting diverse source and display combinations.

• 4K60 HDR & Ultra-Low Latency
  Delivers crystal-clear images with near-zero delay which perfect for mission-critical applications such as EOC, ERC and OCC.

• Enhanced Collaboration
  Streamline content switching and sharing to improve communication and teamwork across your AV environment.

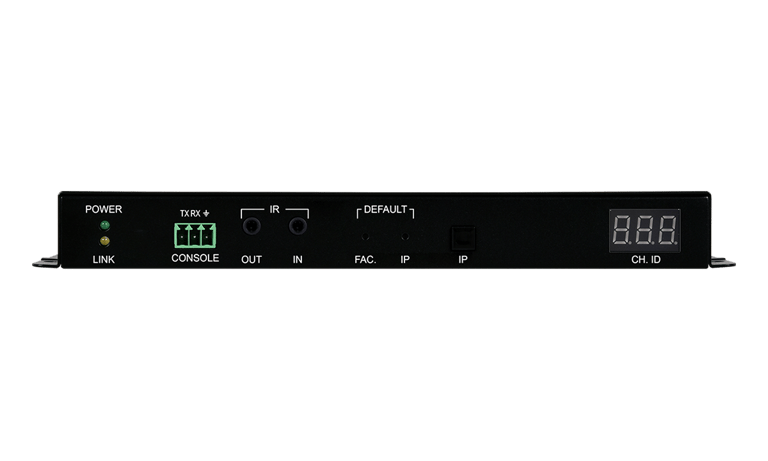

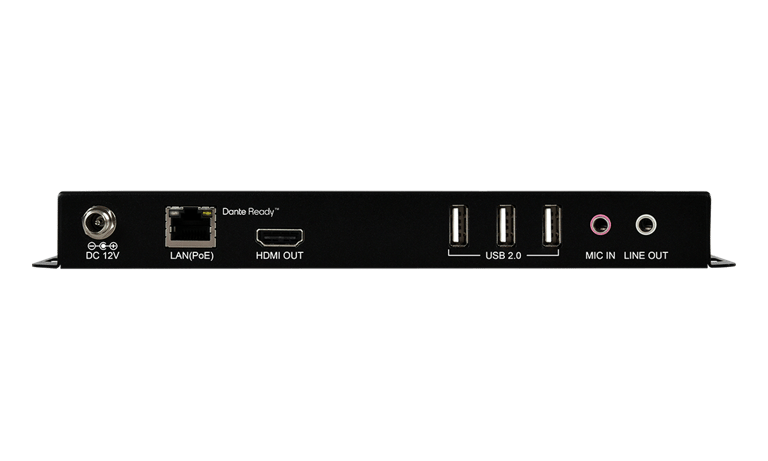

AVIP-A4601D-B1C

4K@60 HDMI over IP Receiver with USB 2.0

• 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode.

• IP interface: RJ45

• Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows

• Supports PoE-PD (IEEE 802.3af).

• Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control.

• Controlled via hotkey, WebGUI, IP Master Controller, and Telnet

• Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)

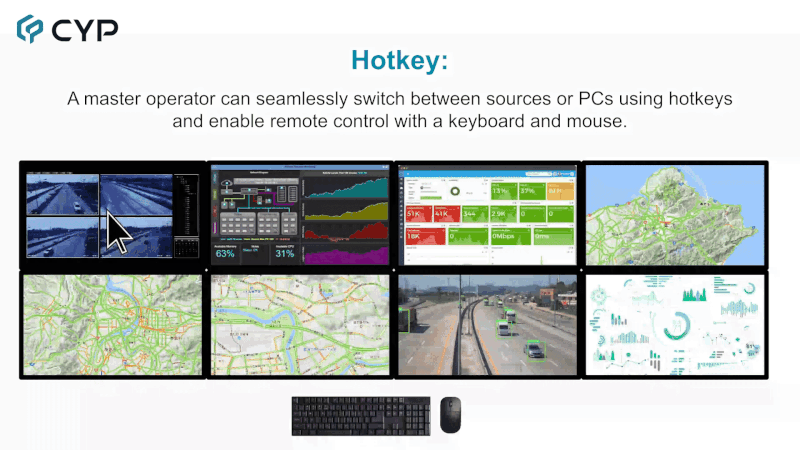

• 7 hotkeys dedicated to routing for transmitters and receivers, 4 hotkeys provide single functions, and 3 hotkeys for multiple functions that activates control system

• Supports independent breakaway A/V and control matrix routing

• Supports extension of many audio formats including 8 channel LPCM and standard Bitstream
  Note: The Line Out only supports LPCM 2.0 sources.

• The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver

• The Mic In sends audio directly to the analog Line Out on the currently routed transmitter
  Note: Only available when the transmitter also has its Line In connected.

• Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks

• Dante Ready brings Dante functionality to products already shipping and installed in sites

• Channels and features can be added as an installation grows

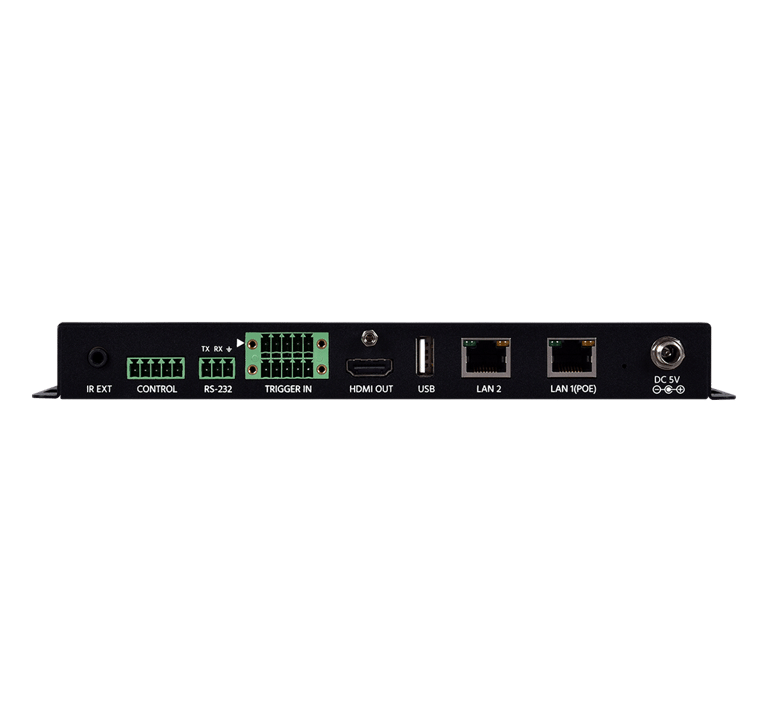

CDPS-CS11

4K60 over 1G IP Master Control

• Enables the management and configuration of multiple compatible Video over IP (VoIP) extenders through a single WebGUI

• Supports point-to-point (unicast) and multi-to-multi (multicast) routing selections

• Control over both matrix and TV wall modes using WebGUI presets

• Definable display groups

• WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection, etc.

• HDMI output displays the WebGUI and system status

• Dual LAN ports enable control over VoIP installations that reside on a logically or physically separate network from the standard local network

• Supports the use of a USB mouse and keyboard to locally control the WebGUI

• Video Routing: Provides drag-and-drop control over the video routing between all detected transmitters and receivers.

• Video Wall Routing: Provides drag-and-drop source selection for predefined video wall groups.

• Digital Audio Routing: Provides drag-and-drop control over the independent routing of digital audio between all compatible transmitters and receivers. Digital audio sources is HDMI

• Line IN Audio Routing: Provides drag-and-drop control over the independent routing of Line In audio between all compatible transmitters and receivers. Line IN audio sources include both Line in and Mic in.

• USB Pairing: Provides drag-and-drop control over the pairing of USB hosts (PC, laptop, etc.) and USB devices (keyboard, mouse, webcam, etc.) between the ports detected on all transmitters and receivers.

• IR Routing: Provides drag-and-drop control over the routing of the IR input and output pairs on all detected transmitters and receivers.

• RS-232 Routing: Provides drag-and-drop control over the routing of the RS-232 ports on all detected transmitters and receivers.

• Macro (Presets) Activation: Provides a simple interface to activate macros (presets) that have been pre-defined and stored within the IP Master Controller.

• User Mgmt.: This tab allows the addition and configuration of standard users. The amount of access each user has to the system, and which sources and displays they can control, is independently configured.

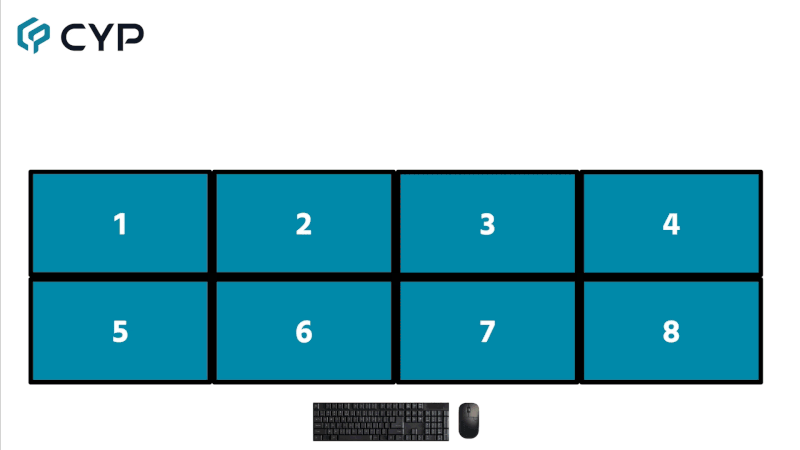

• ODS Menu: This helps operator to access the sources, video wall content & easy switching using the keyboard hotkeys.

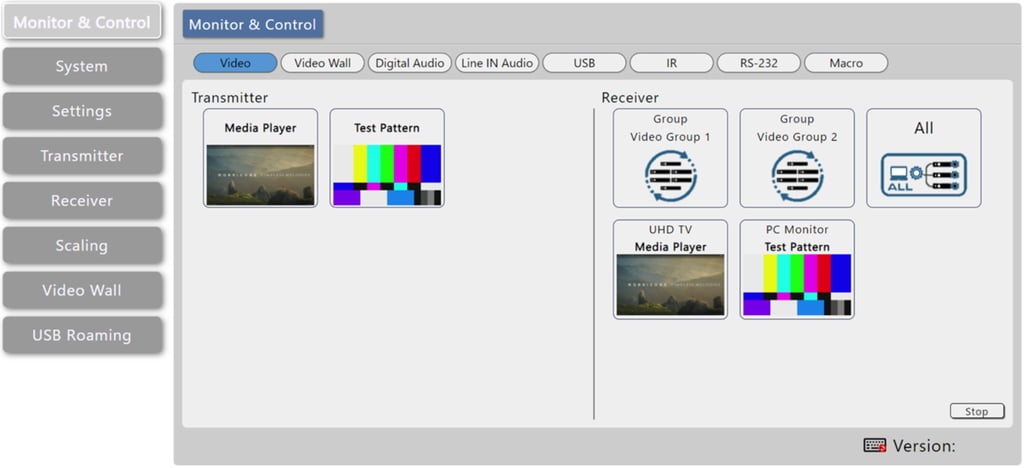

WEB GUI OF CONTROLLER

KEY FUNCTIONS
